SST – Structural Spacer Tape
ARBOPROTECT Pro®

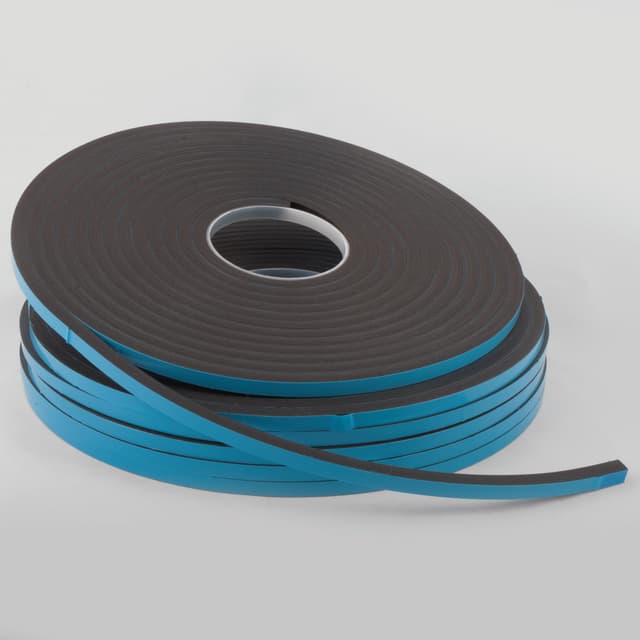

ARBOPROTECT Pro® SST is a specialised load-bearing PVC foam tape, designed to act as a spacing element between the insulated glass (IG) unit and frame during the assembly of structural glazing fabrications. SST forms an effective short-term bond between the frame and the IG unit, creating a gap of the correct dimensions for the structural silicone, which is used as the primary bond.
%3Aformat(webp)%3Aquality(75)&w=3840&q=75)
Unique properties of ARBOPROTECT Pro® SST
ARBOPROTECT PRO® SST eases the assembly of structural glazing elements by forming an effective short-term bond that holds the IG unit in correct position while the structural silicone is applied and cures. It is compatible with Ultraglaze Structural Silicone.
Specialised load-bearing PVC foam tape for structural glazing fabrications
Eases assembly of structural glazing elements
Forms effective short-term bond between frame and IG unit during assembly
Creates correct gap dimensions for structural silicone application
Compatible with Ultraglaze Structural Silicone
Service life of 20 years+
%3Aquality(75)%3Fupdated_at%3D2026-06-04T10%3A14%3A33.058Z&w=3840&q=75)
Main Applications
ARBOPROTECT Pro® SST are recommended for use as a spacing element in structurally glazed fabrications where the IG unit must be held in correct position during structural silicone application and cure.
Structural Glazing Assembly
Acts as a spacing element between the IG unit and frame, holding the correct gap for structural silicone during assembly.
IG Unit Positioning
Forms an effective short-term bond to hold the IG unit in the correct position while the structural silicone is applied.
Structural Silicone Preparation
Creates a gap of the correct dimensions for Ultraglaze Structural Silicone, which is used as the primary structural bond.
Glazed Curtain Wall & Façade
Used in structurally glazed curtain wall and façade fabrications where precise IG unit spacing is critical.
Technical Specifications & Downloads
| Describtion | Performance |
|---|---|
| Colour | Black |
| Density Kg/m3 | 320-350 |
| Thermal conductivity coefficient W/mK | 0.052 |
| Tensile strength Kpa | >1000 |
| Typical Shore 00 Hardness | 65-80 |
| Elongation at break | >160 |
| Application temperature | +10 to +30ºC |
| Service temperature | –30 to +60º |
| Service Life | 20 years + |
%3Aquality(75)&w=3840&q=75)
Frequently Asked Questions
Key benefits include: specialised load-bearing PVC foam for structural glazing applications; Shore 00 hardness of 65–80; density of 320–350 kg/m³; tensile strength >1000 kPa; elongation at break >160%; thermal conductivity of 0.052 W/mK; application temperature +10°C to +30°C; service temperature -30°C to +60°C; service life of 20 years+; and compatibility with Ultraglaze Structural Silicone.
ARBOPROTECT PRO® SST is the only ARBO® product specifically designed as a load-bearing structural spacer tape for use in structural glazing fabrications. It eases the assembly of structural glazing elements by forming an effective short-term bond between the frame and IG unit, holding the correct gap dimensions for Ultraglaze Structural Silicone to be applied. Its high Shore 00 hardness of 65–80 and tensile strength of >1000 kPa provide reliable load-bearing performance throughout the assembly process.
ARBOPROTECT Pro® products provide weathertight, airtight and durable sealing solutions for façade openings, window and door frames, cavity walls, glazing systems and structural glazing fabrications. The range covers EPDM membranes, foam tapes, butyl strips and structural spacer tapes for both site and modular off-site construction applications.
ARBOPROTECT Pro® EPDM membranes have an expected service life of up to 50 years under normal conditions. Foam tape and butyl strip products carry a service life of 20 years or more. All products should be stored in original packaging in a dry, cool environment away from direct sunlight. ARBOPROTECT Pro® EPDM membranes have an expected service life of up to 50 years under normal conditions. Foam tape and butyl strip products carry a service life of 20 years or more. All products should be stored in original packaging in a dry, cool environment away from direct sunlight.
Yes. ARBOPROTECT Pro® EPDM-based products are solvent-free and compatible with sensitive substrates including natural stone, paint finishes, glass and concrete. They do not affect solvent-sensitive paint finishes and are compatible with the full range of ARBO® adhesives and sealants.
ARBO® Technical Services provides guidance on product selection, substrate preparation, primer requirements and correct installation methods for the ARBOPROTECT Pro® range. Direct contact is available via ARBO® Technical Services for project-specific advice on substrate compatibility and application.
