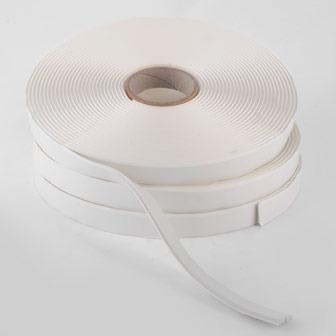

ARBOSeal GZ Tape – Butyl Glazing Tape

The ARBOSeal GZ Tape is a product of the ARBOPROTECT Pro® category and is used as a flat-section preformed butyl strip that deforms under moderate pressure with appreciable surface tack and recovery – the ideal solution for compression joints in cladding, roofing and the glazing of double-glazed units into timber and externally beaded metal frames.

Unique properties of ARBOSeal GZ Tape

The ARBOSeal GZ Tape combines reliable compression sealing with long-term durability. Its butyl formulation provides surface tack and recovery under moderate pressure, delivering a watertight, flexible seal for glazing, cladding and roofing joints.

  • Flat section preformed butyl strip

  • Deforms under moderate pressure with surface tack and recovery

  • Suitable for compression joints in cladding and roofing

  • For glazing double-glazed units into timber and externally beaded metal frames

  • Suitable for lap joints in guttering

  • Service life of 20 years+

  • Available in Black, White and Teak

Technical Specifications & Downloads

DescriptionPerformance
Colours Black, White, Teak
Application Temperature+ 5º C to + 50º C
Service Temperature- 25º C to + 50º C
Chemical ResistanceFair resistance to most dilute acids and alkalis, vegetable oils and alcohol. Poor resistance to hydrocarbon solvents.
UV ResistanceGood
Service Life20 years+

Associated Products

Easy Stick GS EPDM - ARBOPROTECT Pro®

Self-adhesive EPDM strip with fibreglass reinforcement and butyl underlay, 1.3mm thick, 20m reels in widths up to 1 metre.

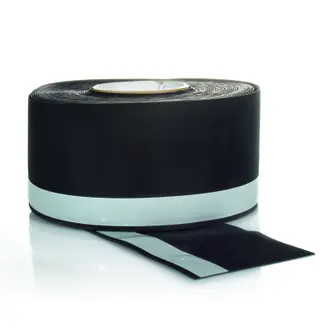

ARBO Façade Membrane BS-1 - ARBOProtect Pro®

EPDM façade membrane with integral butyl strip for easy application to timber and composite window and door frames.

ARBOStrip F90 - ARBOPROTECT Pro®

Dense PVC foam tape with strong acrylic adhesive for use as part of glazing systems and as a make-and-break seal.

Arbostrip F42 - ARBOPROTECT Pro®

Medium density foam compression seal for use as weather seal, dust seal or dry glazing in internal doors, screens and ventilators.

ARBO® Cleaner 17

Xylene-based cleaner for the effective cleaning and degreasing of construction substrates prior to sealant application.

Frequently Asked Questions

1

Why choose ARBOSeal GZ Tape?
The ARBOSeal GZ Tape of the ARBOPROTECT Pro® range, is a preformed butyl strip specifically designed for compression sealing in glazing, cladding and roofing. Its butyl formulation deforms under moderate pressure with appreciable surface tack and recovery, ensuring a reliable seal in compression joints. With a service life of 20 years, UV resistance and availability in Black, White and Teak, it is a versatile and durable solution for a wide range of joint types.


2

What are the key benefits ofARBOSeal GZ Tape?
Key benefits include: preformed butyl strip that deforms under moderate pressure; surface tack and recovery for reliable compression sealing; service temperature range of -25°C to +50°C; application temperature range of +5°C to +50°C; good UV resistance; service life of 20 years+; availability in Black, White and Teak; and a wide range of size options from 10mm to 50mm width and 3mm or 6mm thickness.

3

What applications are ARBOPROTECT Pro® products designed for?
ARBOPROTECT Pro® products provide weathertight, airtight and durable sealing solutions for façade openings, window and door frames, cavity walls, glazing systems and structural glazing fabrications. The range covers EPDM membranes, foam tapes, butyl strips and structural spacer tapes for both site and modular off-site construction applications.


4

How long is the service life of ARBOPROTECT Pro® membrane and tape products?
ARBOPROTECT Pro® EPDM membranes have an expected service life of up to 50 years under normal conditions. Foam tape and butyl strip products carry a service life of 20 years or more. All products should be stored in original packaging in a dry, cool environment away from direct sunlight. ARBOPROTECT Pro® EPDM membranes have an expected service life of up to 50 years under normal conditions. Foam tape and butyl strip products carry a service life of 20 years or more. All products should be stored in original packaging in a dry, cool environment away from direct sunlight.

5

Are ARBOPROTECT Pro® products compatible with sensitive substrates?
Yes. ARBOPROTECT Pro® EPDM-based products are solvent-free and compatible with sensitive substrates including natural stone, paint finishes, glass and concrete. They do not affect solvent-sensitive paint finishes and are compatible with the full range of ARBO® adhesives and sealants.

6

What technical support is available for specifying ARBOPROTECT Pro®?
ARBO® Technical Services provides guidance on product selection, substrate preparation, primer requirements and correct installation methods for the ARBOPROTECT Pro® range. Direct contact is available via ARBO® Technical Services for project-specific advice on substrate compatibility and application.

Explore the ARBO® Product Family

Sealants

Sealants for reliable movement joint, perimeter and weatherproof sealing in a wide range of applications.

Weather Protection

Effective weather sealing solutions for interface applications, penetration sealing and structural joints.

Adhesives

Bonding solutions for secure and durable adhesion across façade and construction substrates.

Accessories

Caulking Guns, Nozzles, Knives, Scrapers, G Clamps etc.

Find your contacts

Regardless of whether you are an architect and planner, property developer, industry specialist, distributor, applicator or specifier – if you have any questions about our products, services or specific construction projects, please feel free to contact the CARLISLE® contact person in your area with your technical questions. Our experts will be happy to advise you.

Here's how to do it: Simply enter your postcode in the search field of the map

CCM Logo
CARLISLE® Construction Materials Ltd.

Lancaster House, Millenium Business Park
Mansfield, Notts NG19 7DW
T +44 1623 627 285
E info.uk@ccm-europe.com

  • LinkedIn
  • Facebook
  • YouTube
© 2026 CCM Europe
Our Solutions
  • EPDM Membranes
  • TPO/FPO Membranes
  • Liquid Waterproofing
  • Facade Systems
  • Sealing & Bonding
Products
  • RESITRIX®
  • HERTALAN®
  • SURE WELD®
  • ALUTRIX®
  • ARBOFLEX®
  • ARBO®
Service
  • Downloads
  • Technical videos
  • Search
  • Contact
  • Stockists
About CARLISLE® CM Europe
  • About Us
  • Contact
  • Jobs & Careers
  • CARLISLE USA
Legal
  • Data Protection
  • Terms & Conditions

Main Applications

ARBOSeal GZ Tape is used for compression joints in cladding and roofing, lap joints in guttering and glazing double-glazed units into timber and externally beaded metal frames.

Cladding Compression Joints

Provides a reliable seal for compression joints in cladding systems, deforming under moderate pressure to fill the joint.

Roofing Lap Joints

Suitable for lap joints in guttering and roofing applications, providing a durable weather seal

Timber Frame Glazing

For glazing double-glazed units into timber frames, providing a flexible and watertight butyl seal.

Metal Frame Glazing

Suitable for glazing double-glazed units into externally beaded metal frames.
