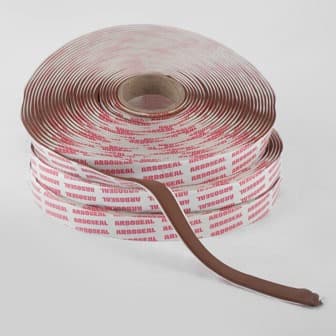

Arboseal Intumescent Tape – Preformed Fire Retardant Strip
A flat section preformed intumescent strip based upon synthetic rubbers and carefully chosen fire resistant materials. It deforms under moderate pressure and has appreciable surface tack and recovery. When subject to flame, it intumesces and chars, blocking the passage of fire and smoke.
%3Aformat(webp)%3Aquality(75)&w=3840&q=75)
Specify Arboseal Intumescent Tape
Add products straight to your project specification or download product info and save for later.
Unique properties of Aroboseal Intumescent Tape
Deforms under moderate pressure with appreciable surface tack and recovery. Recommended for internal and external fire-retardant glazing and HVAC metal ducting, providing up to 30 minutes fire integrity.
Intumesces and chars under flame to block fire and smoke
30 minutes fire integrity for internal and external fire-retardant glazing
Suitable for HVAC metal ducting applications
Used with ARBOSil 1070 for fire-retardant glazing systems
Surface tack and recovery – deforms under moderate pressure
Available in White and Teak
%3Aquality(75)%3Fupdated_at%3D2023-08-07T18%3A12%3A39.466Z&w=3840&q=75)
Main Applications
Intumescent Tape are used in joints, ductwork, fire doors and glazing systems where intumescent fire protection is required..
HVAC Ducting
Provides intumescent sealing for HVAC metal ducting to prevent fire and smoke spread through building services penetrations.
Fire Doors & Glazing
Used for internal and external fire-retardant glazing and fire door detailing, providing up to 30 minutes fire integrity.
Expansion Joints
Suitable for sealing expansion joints in fire walls and partitions.
Joints in Fire Walls
Applied in joints within fire walls to prevent fire and smoke passage between compartments.
Technical Specifications & Downloads
| Description/Standard | Performance | |
|---|---|---|
| Type | Fire Retardant Flat Butyl Strip | |
| Product Code (Teak) | TPINN153STK | |
| TProduct Code (White) | TPINN153SWH | |
| Colours | Teak, White | |
| Application Temperature | + 5º C to + 50º C | |
| Service Temperature | - 25º C to + 50º C | |
| Chemical Resistance | Fair resistance to most dilute acids and alkalis, vegetable oils and alcohol. Poor resistance to hydrocarbon solvents. | |
| UV Resistance | Good | |
| Service Life | 20 years + |
Associated Products
%3Aquality(75)&w=3840&q=75)
%3Aquality(75)&w=3840&q=75)
%3Aquality(75)&w=3840&q=75)
%3Aquality(75)&w=3840&q=75)
Frequently Asked Questions
ARBOSeal Intumescent Tape is a preformed strip that intumesces and chars when subject to flame, physically blocking the passage of fire and smoke through joints. It provides up to 30 minutes fire integrity for internal and external fire-retardant glazing and HVAC metal ducting, and is used alongside ARBOSil 1070 in complete fire-retardant glazing systems.
Key benefits include: intumescent action that blocks fire and smoke passage; up to 30 minutes fire integrity for glazing; suitability for HVAC ducting and expansion joints; surface tack for easy installation; deforms under moderate pressure with good recovery; and availability in White and Teak to suit different substrate finishes.
It is a complete, innovative solution for façade and apertures that brings together a ground-breaking group of products into one cohesive range. The system combines industry-leading fire safety (with up to Class A2-s1,d0 reaction to fire) with W1-rated resistance to water penetration and airtightness.
Alongside the innovative self-adhesive EPAM® perimeter seal, the complete system includes a Class A W1 Breather Membrane, a Class A Air & Vapour Control Layer, Class A High-Tack Sealing Tapes, and a Class B W1 Breather Membrane.
The system is ideal for both new build and refurbishment projects across commercial, industrial, residential, and retail buildings. Because of its consistency and ease of installation, it is also an excellent choice for modular and off-site factory-built construction projects.
The range has been developed to answer specifiers’ requirements for the highest verifiable fire safety while providing significant time and cost savings. The system avoids the mess, waste, and labour-intensive installation times associated with traditional pasted methods.
