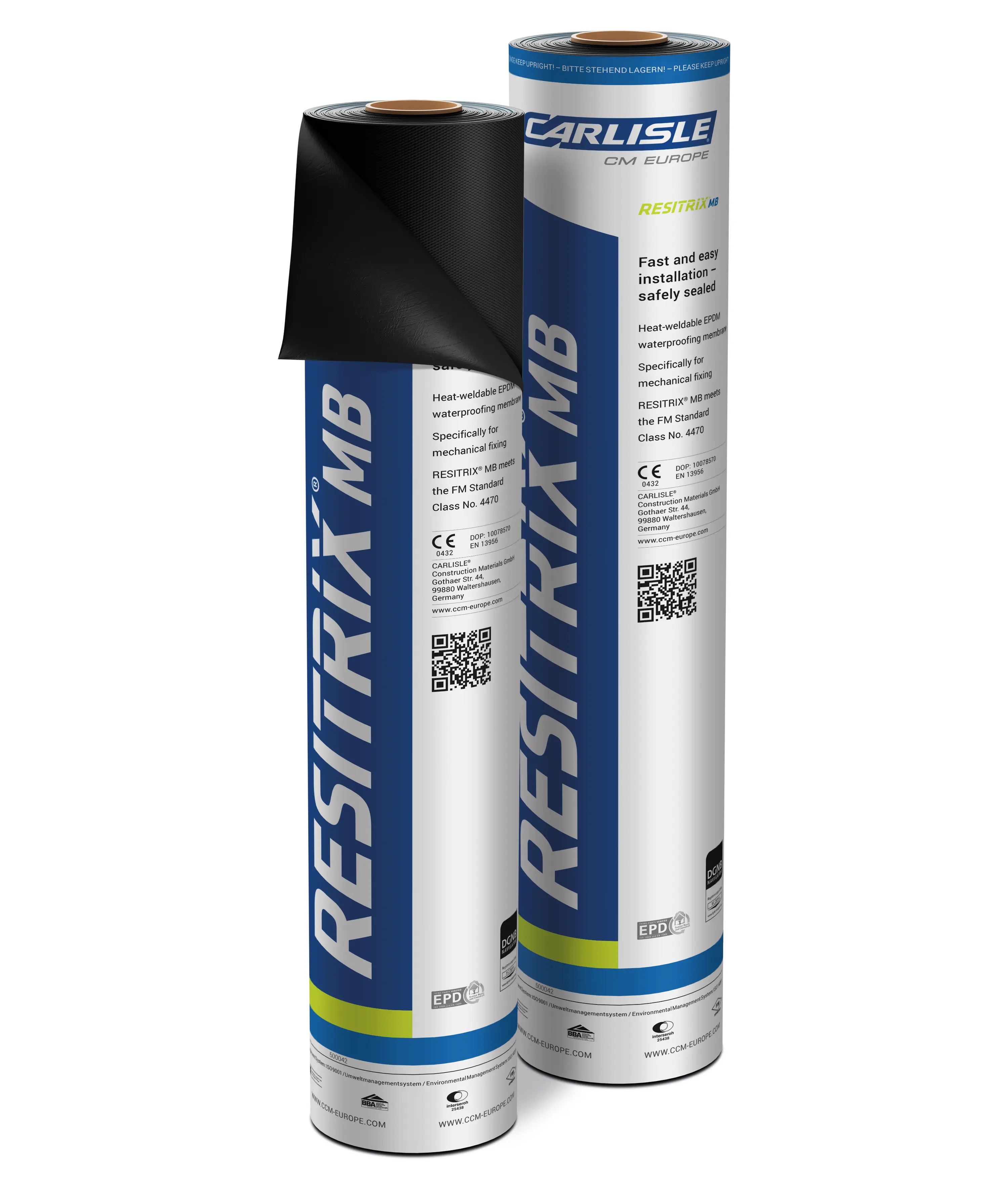

RESITRIX® MB EPDM Waterproofing Membrane

RESITRIX® MB is a hot air-weldable waterproofing membrane with a synthetic rubber (EPDM) base. It’s particularly suited to mechanical fixation and loose laying with ballasting. RESITRIX® MB is also suitable for loose laying in the building waterproofing sector.

  • Certified service life of more than 50 years and also named the only product of its kind for joining seams (according to a study conducted by the German Plastics Centre)

  • Simple and safe installation without any need for naked flames 100% leak-tight welded seam – simple visual inspection

  • Sustainable (EPD-certified and DGNB-compliant)

  • BBA Certified

Installation variants of RESITRIX® MB

With this RESITRIX® MB waterproofing membrane, you can choose from two installation variants that are best suits your roofing system:

  • Mechanical fixation

  • Loose laying with ballasting

Please refer to the RESITRIX® specification guideline and/or the RESITRIX® installation instructions for detailed substrate requirements and installation instructions.

Einfache Auftragung von FG 40

Add RESITRIX® MB to the specification

Add products straight to your project specification and 3D models with NBS Chorus and Autodesk Revit integrations. Or download product info and save for later.

Technical Data

Material Properties Value
Overall Thickness3.1 mm-5%/+10%
Weight per unit area approx. 3.5 kg/m2
Standard delivery length per roll10 m
Width supplied1,000 mm (cut strips on request)
Storage life24 months in original packaging
Property class acc. to DIN 18531E1
Building material class acc. to DIN 4102, Part 1B2
Reaction to fire acc. to DIN EN 13501, Part 1Class E
Fire behaviour acc. to DIN 4102, Part 7 and DIN CEN/TS 1187Resistant to flying
sparks and radiating heat

Find RESITRIX® MB stockist near you

With the simple dealer search, you can quickly and easily find a stockist in your area as well as the CARLISLE® specialist adviser
